Fiber Optic Patch Cord Pigtail, 90 Degree 45 Degree Bent Boot E2000 PCAPC LC SC ST SM Simplex/Duplex 2.0/3.0mm MT‑LC20001 for FTTH FTTB FTTX Network

Product Categories
Cixi Anshi Communication Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Fiber Optic Patch Cord Pigtail, 90 Degree 45 Degree Bent Boot E2000 PCAPC LC SC ST SM Simplex/Duplex 2.0/3.0mm MT‑LC20001 for FTTH FTTB FTTX Network

Cable Type : Simplex,Duplex,Bundle,Ribbon,multi-fiber

Place of Origin : Zhejiang, China

Model Number : AS-ODF-SC/SC

MOQ : Negotiable

Brand Name : ANSHI

Length : Custom Length

Type : Fiber Optic Cable

Boot diameter : 2.0mm, 3.0mm

Fiber counts : Simplex or duplex

Price : Negotiable

Polishing type : PC/SPC/UPC/APC

Number of Conductors : 2

Applications : Optic-fiber Communication Systems

Certification : ISO9001

Contact Now

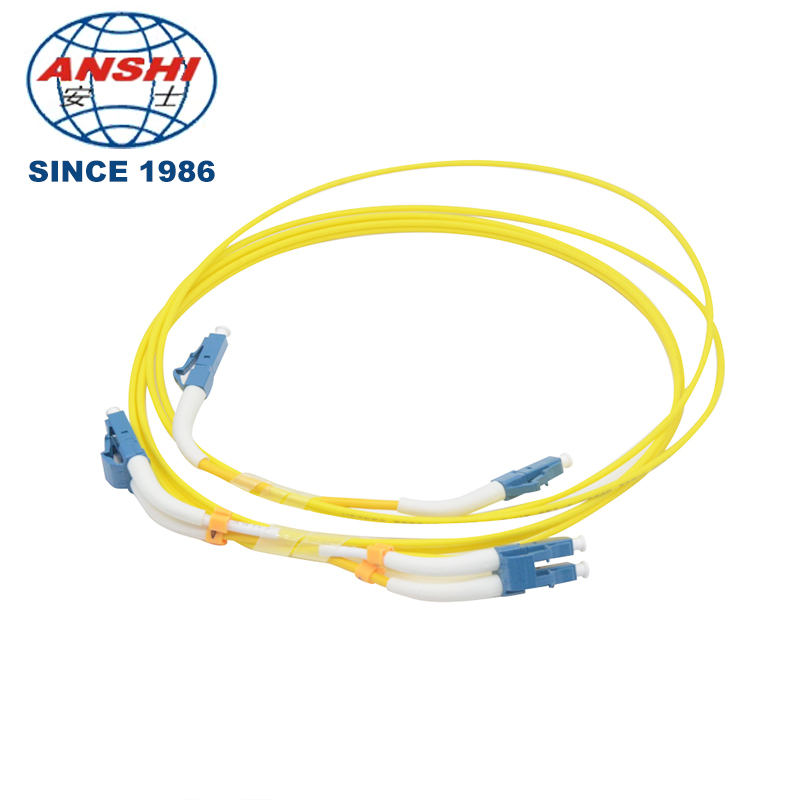

LC Optical Fiber Connector with 45 degree and 90 degree bent boot patchcord
Item Unit FC,SC,ST,LC,MU,MTRJ,MPO,E2000/PC FC,SC,ST,LC,MU,MTRJ,MPO,E2000/UPC FC,SC,ST,LC,MU,MTRJ,MPO,E2000/APC

Insertion Loss

dB

≤0.20

≤0.20

≤0.30

Repeatability

dB

≤0.10

Exchangeability

dB

≤0.20

Return Loss

dB

≥45(SM)

≥50(SM)

≥60(SM)

Fiber Type



Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM)

Operating Temperature

°C

-40~+80

Storage Temperature

°C

-40~+85

Durability

time

>1000 times

Cable Diameter

Ø3.0, Ø2.0, Ø0.9

Fiber Optic Patch Cord Pigtail, 90 Degree 45 Degree Bent Boot E2000 PCAPC LC SC ST SM Simplex/Duplex 2.0/3.0mm MT‑LC20001 for FTTH FTTB FTTX Network Fiber Optic Patch Cord Pigtail, 90 Degree 45 Degree Bent Boot E2000 PCAPC LC SC ST SM Simplex/Duplex 2.0/3.0mm MT‑LC20001 for FTTH FTTB FTTX Network Fiber Optic Patch Cord Pigtail, 90 Degree 45 Degree Bent Boot E2000 PCAPC LC SC ST SM Simplex/Duplex 2.0/3.0mm MT‑LC20001 for FTTH FTTB FTTX Network
